15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station

Name: 15mmin CZ Purlin Roll Forming Machine 65T 15 Roller Station
Brand: Gracias
Price: 1 USD

Wholesale 15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station from china suppliers

Brand Name : Gracias

Model Number : C/Z

Certification : ISO,CE

Place of Origin : China

MOQ : one set

Price : As discussion

Payment Terms : T/T, L/C

Supply Ability : 50sets per month

Delivery Time : 30-50 work days

Packaging Details : as request

Voltage : 380V/50HZ 3Phase

Weight : 6.5T

Condition : New

Tile type : Steel,galvanized plate

Warranty : 1 Year

Production capacity : 15m/min

Contact Now

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station

1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching machine---cutting---product to stand

2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3. Technical parameters

1) Profile

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station

2) inner tight decoiler

Coil inner diameter	450mm--700mm
Max width of coiling	1250mm
Max weight of loading	5000kg

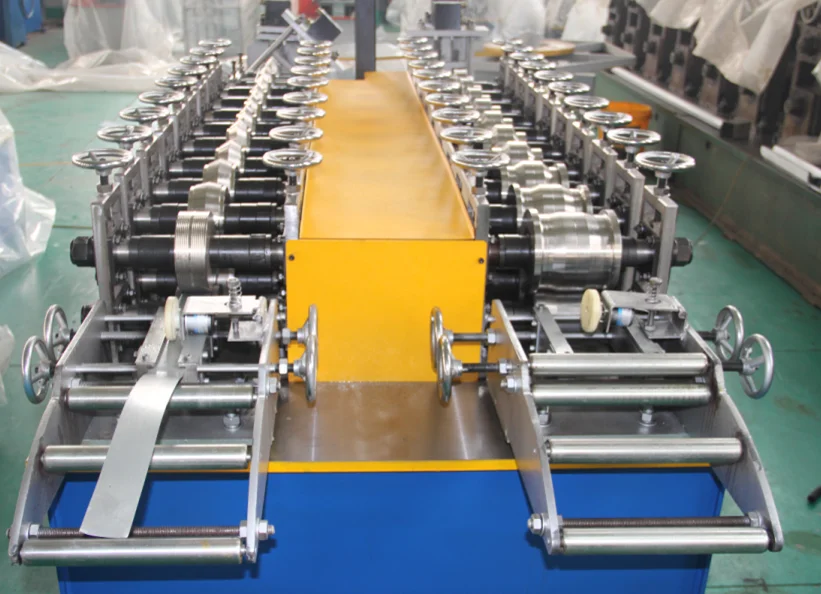

3) main forming machine

Shaft material	45# steel,bearing steel outer diameter 85mm
Main motor power	5.5kw
Forming speed	8--15m/min
Voltage	380v,50hz
Roller station	15

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station

4) cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming

5) control system

A. PLC: taida form Taiwan

B. Coder:from south korea

6) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station
