15KW CZ Purlin Roll Forming Machine 20m/min 16 Steps

  • 1
  • 2
  • 3

Brand Name : Gracias

Model Number : C/Z

Certification : CE,ISO

Place of Origin : China

MOQ : one set

Price : As discussion

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20sets per month

Delivery Time : 30-90 work days

Packaging Details : fit for ocean shipping

Voltage : 380V/50HZ 3Phase

Warranty : 12 months

Type : c plus z design cz purlin roll form machine

Production capacity : 10-20m/min

Condition : New

Tile type : Steel

Control system : PLC touch/button screen

After-sales service provided : Video technical support

Contact Now

15KW CZ Purlin Roll Forming Machine 20m/min 16 Steps

CZ purlin machine feeding guide and leveling device
The In-feed Section of the machine allows for variations in sheet width.
Pre-Level Device with 4 over 3 shafts to remove the Coil-set.
Making sure the material is flat enough to be formed (or punched).

CZ purlin machine rollers:One-button control to swap from C to Z, Z to C.

Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12(=D3 steel), CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 450# H type steel by welding
High Precision Servo Motor is adopted to ensure the punching accuracy.

Technical parameters of steel purlins installation making machine :

NO. ITEM PARAMETER
1 Material type GI,PPGI
Width 190-420mm
thickness 0.8-3mm
Yield stress 350-550Mpa
2 Product Cover width 80-300mm
Wave height 80-300mm
Pitch width 40-80mm
3 Decolier Type Automatic with coil car
Suitable coil OD/ID 1200/250-508mm
Max coil width 1000mm
Max capacity 10T
4 Levelling parts roller Diameter:90mm
No.45 steel with quenching
Forming stand 16step
5 Punching parts Type Hydraulic punching
Model material GCr12
6 Main machine Roller 90mm
GCr15 chrome plated
Main machine structure Guide column or wallboard
7 Power requirement Main motor 15kw
Hydraulic pump 7.5kw

15KW CZ Purlin Roll Forming Machine 20m/min 16 Steps

15KW CZ Purlin Roll Forming Machine 20m/min 16 Steps

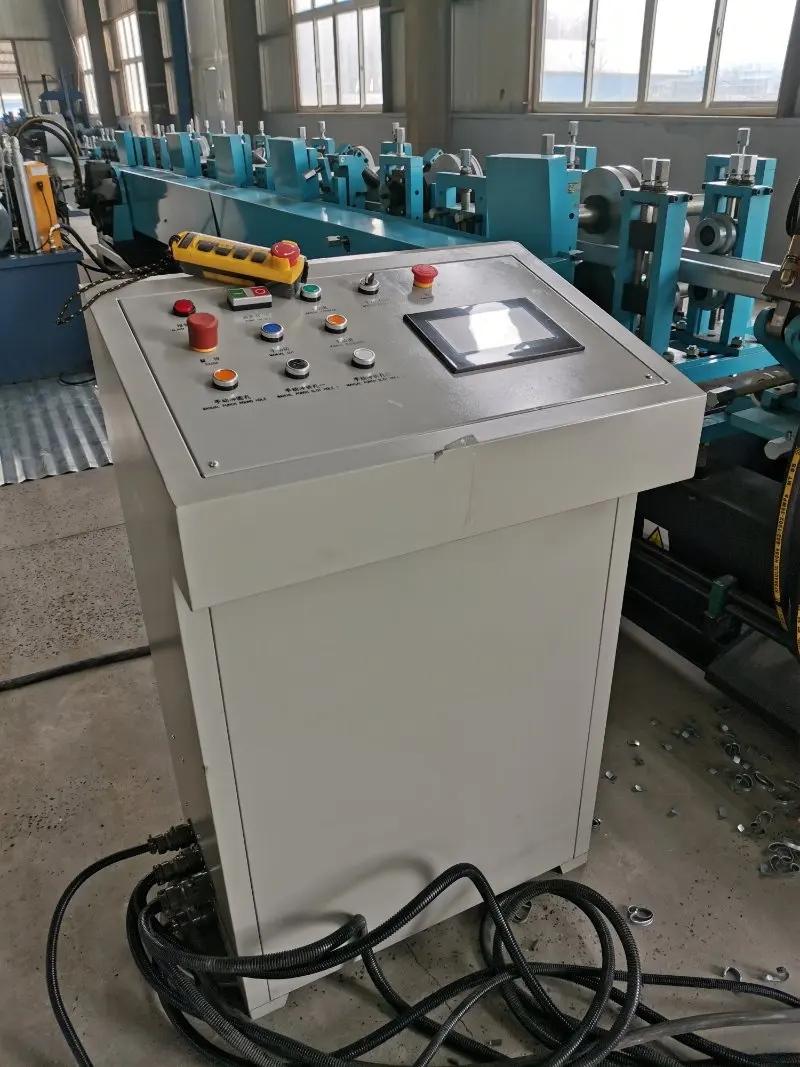

PLC:Control system Can setting as request

15KW CZ Purlin Roll Forming Machine 20m/min 16 Steps

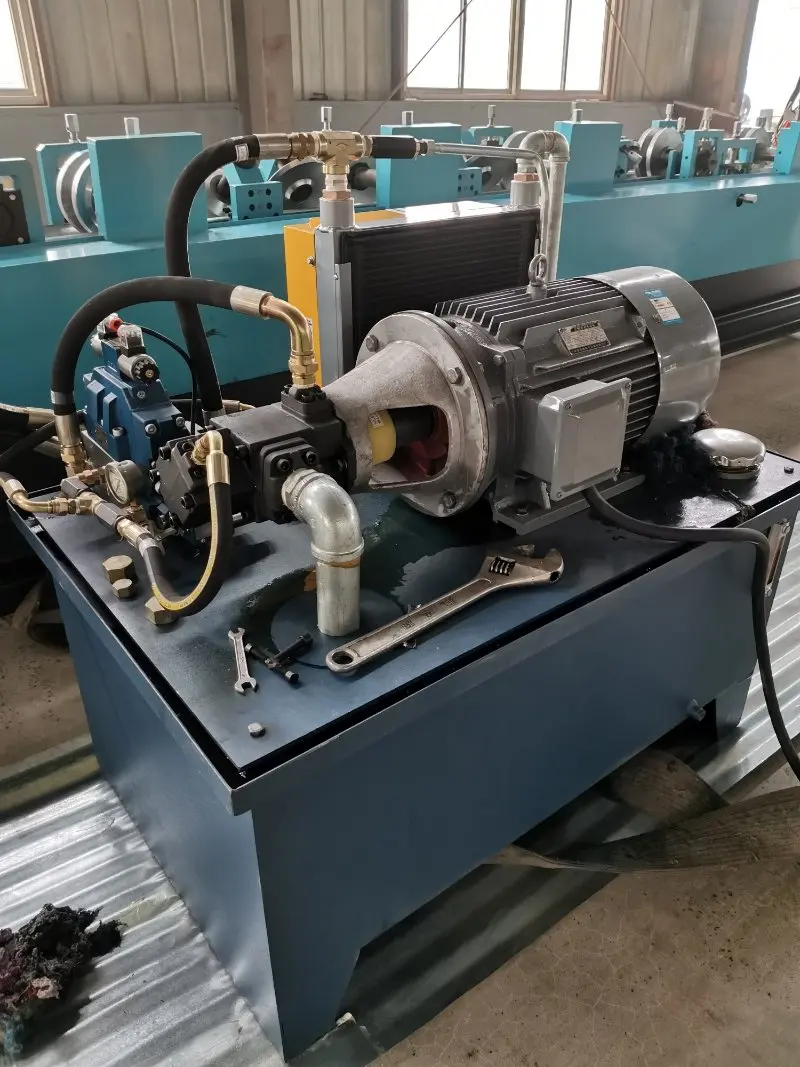

Oil pump :

15KW CZ Purlin Roll Forming Machine 20m/min 16 Steps

Decoiler:

15KW CZ Purlin Roll Forming Machine 20m/min 16 Steps
